Description
Affordable Compatibility in a Compact Design

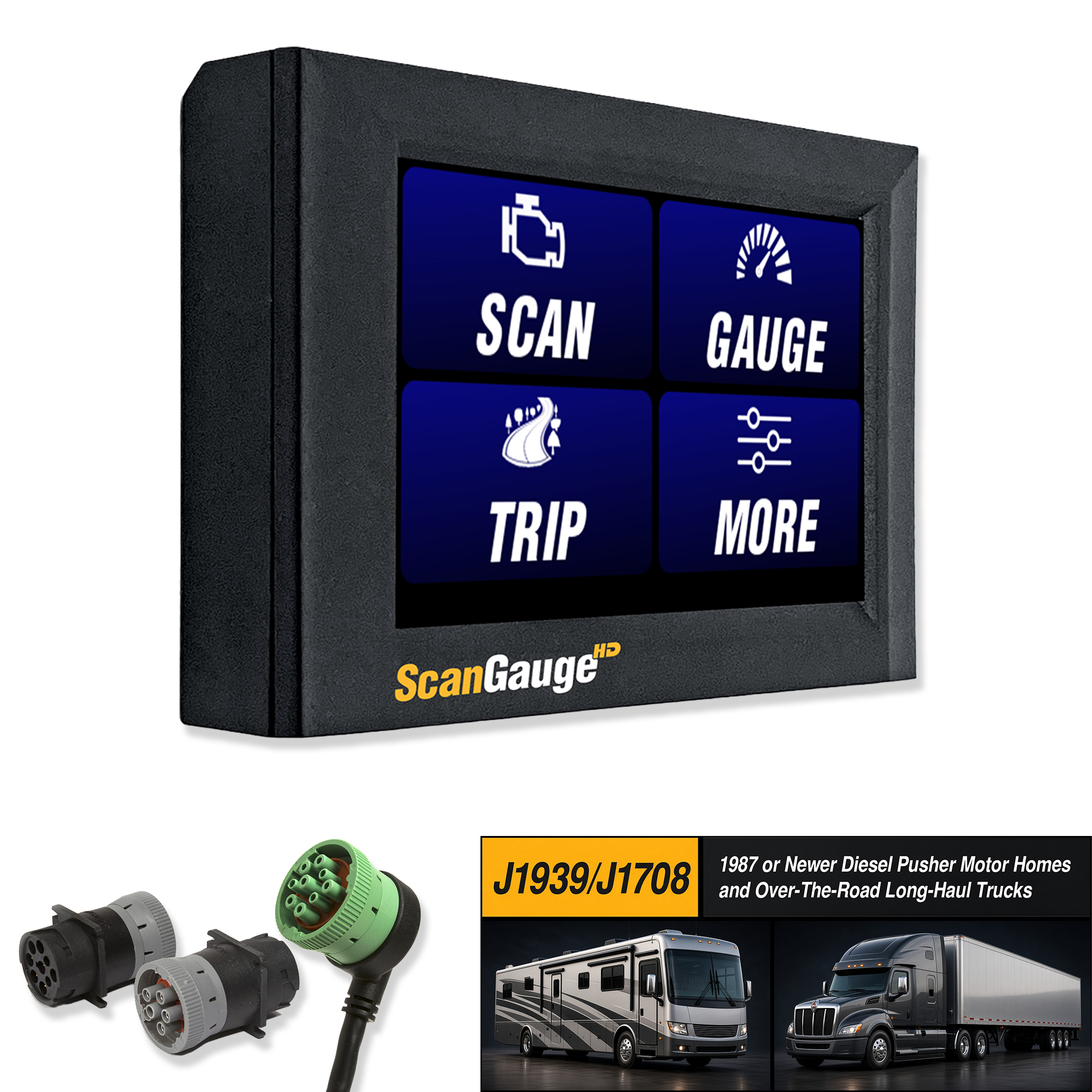

ScanGauge HD is a plug-in gauge display, trip computer and trouble code reader for diesel pusher RVs, long-haul trucks and other big rigs. It works on most 1987 and newer vehicles with a J1939 (9-pin) or J1708 (6-pin) diagnostic port and shows live data on its own color touch screen. No phone, app or subscription needed.
Plug it into the diagnostic port under the dash and it detects the protocol automatically. See up to 9 gauges at once, including real-time fuel economy: instant and average MPG and gallons per hour, read and clear trouble codes, and track trips. Standard OBDII tools don’t connect to J1939 or J1708 vehicles, and ScanGauge HD is built for them.
Dual Compatibility
Works with J1939 & J1708 Vehicles
- Works with both J1939 (9-pin) and J1708 (6-pin) diagnostic ports, including the 2017+ green Type II 9-pin
- Includes a Type II J1939 cable (also fits older black 9-pin ports) and a J1708 6-pin adapter, no splitter needed
- For diesel pusher RVs, long-haul trucks and big rigs, 1987 and newer

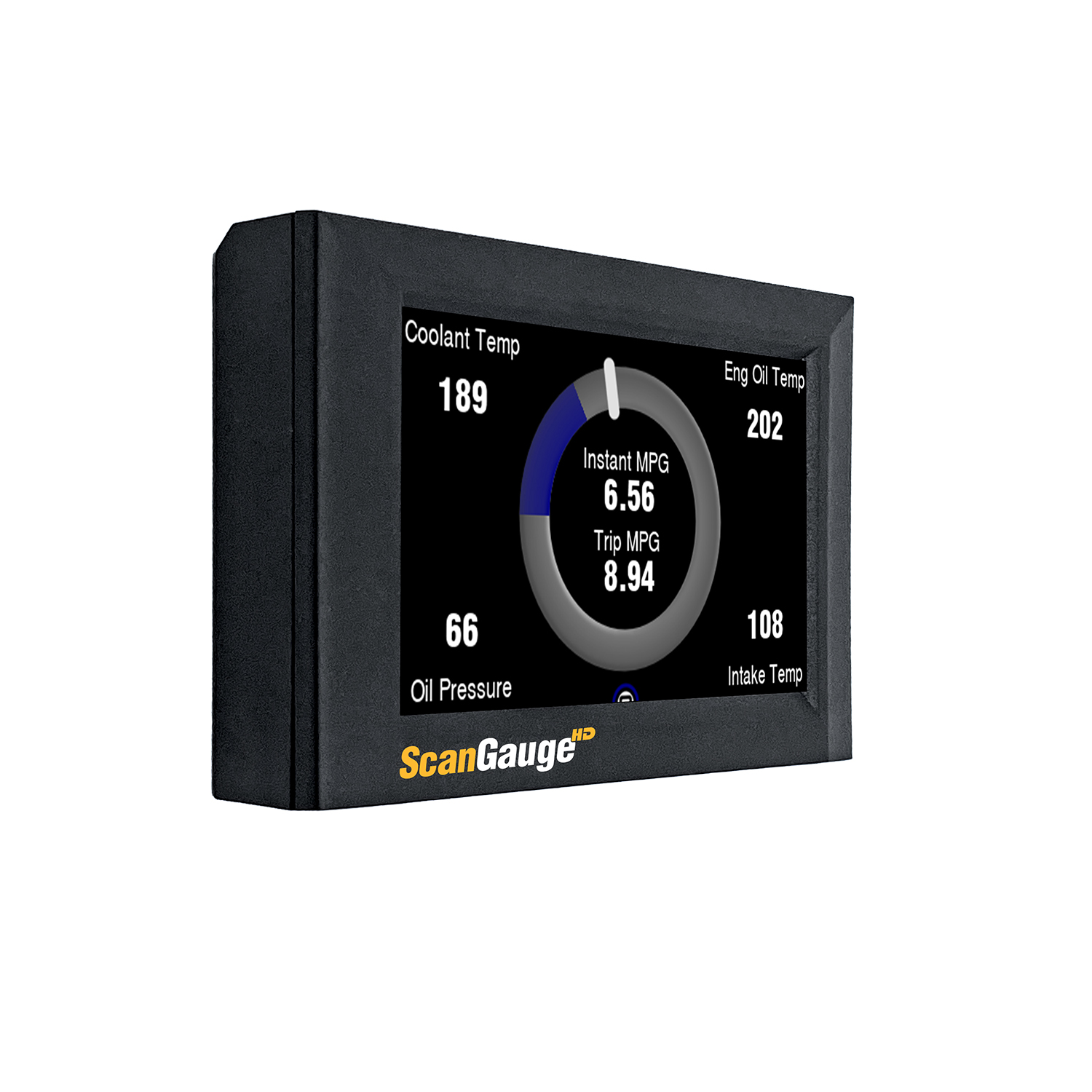

- Color touch screen with up to 9 gauges at once
- More than 15 built-in digital gauges, 5 trip computers and Performance Monitor
- Check & clear trouble codes and X-Gauge programmable gauges
- No phone, app or subscription needed
- Includes Deluxe Window Mount: attaches magnetically, rotates 360 degrees, and lifts off to move between vehicles
- Not for gas-powered vehicles; for 1996+ cars and light trucks, see ScanGauge 3
